Transparent proxy with V2ray and clash

11 minute read

Background

My previous post shows how to set up a proxy server and uses it on various clients, while setting up the client on every device is cumbersome. In addition, people may want to forward all network traffic through a proxy regardless it is http/https/socks5 or not. In these situations, it is better to set up a global proxy works as a router, all devices (includes itself) connected to it would use the proxy, which is called transparent proxy, people also call it bypass gateway or soft router. Most of these methods directly work on tcp/upd.

In this post, I will demonstrate how to set up transparent proxy on Linux step by step. In order to understand this post, you should know basics about Linux and networks.

There are many tools to achieve transparent proxy, like Proxifier (Windows), Surge for Mac, tun2socks, dns2socks for Linux etc. The key of transparent proxy how to proxy DNS. In this post, I didn’t use these tools. I only adopt the V2ray and clash build-in DNS configuration and forward DNS requests to it using iptables and ip route. In fact, Clash has pretty good DNS setting.

Basics

How DNS works?

When you set a http request, it first sents a DNS request (on UDP port 53) with domain name as a payload to the predefined DNS server using local DNS requesting tool, then the DNS request reach the name server, it returns corresponding IP address. Then the APP lunches a TCP connection to the destination server with this IP and TCP data stream. That’s how the normal http/https connection works.

            DNS req
   ___________________________>
APP<---------------------------DNS server
  |         web IP
  |         IP and TCP data
  |----------------------------------->website

When you are using a proxy client/server, things might change. In the following part of this section, I only show the DNS working with a proxy in different setting. The direct link is similar to the normal http connection.

socks5

In socks5 case, the APP packs domain name and TCP data stream to socks5 packages. The client program sent the socks5 data (domain name and tcp data stream) to the proxy server with its proxy protocol, the the DNS resolution is working on the proxy server.

      socks5(domain and tcpdata)                    socks5 data /w proxy protocol                          DNS req
APP--------------------------------->proxy client------------------------------------->proxy server<------------------->DNS server
                                                                                          |     web IP
                                                                                          |
                                                                                          |     IP and TCP data
                                                                                          |--------------------------------website

When global proxy/transparent proxy is required, not all APPs have the socks packing function, so there have to be a program that catches the DNS request and make it works as we want.

tun2socks/redir

tun2socks is part of BadVPN which accepts all incoming TCP connections (regardless of destination IP), and forwards them through a SOCKS server. This allows you to forward all connections through SOCKS without any application support. It can be used, for example, to forward connections through a remote SSH server or through Tor. Because of how it works, it can even be installed on a Linux router to transparently forward clients through SOCKS.

In this case, the program catches the DNS request, and gets the IP address by it’s own way (the result may wrong due to dirty DNS servers or the magics), and it returns it to the APP, the APP then lunches a TCP connection with this IP and the tcp data stream. But in local program, it just packs previous domain name and TCP data stream to as a socks package. then set to the proxy server, and let the proxy server do the actual DNS request.

         requested IP
   <_________________________________              domian and data w/ proxy protocol                      DNS req
APP--------------------------------->proxy client<------------------------------------->proxy server<------------------->DNS server
  |              DNS req               /|\                                                    |      web IP
  |                                     |                                                     |
  |       IP and TCP data               |                                                     |    IP and TCP data
  |-------------------------------------|                                                     |---------------------------->website

Fake IP

Fake IP mode is that the local proxy client catches DNS requests, then return a self-produced fake IP to APP. The APP would lunch a TCP connection with this fake IP and it’s TCP data. When the local proxy client searches the domain name with this fake IP, and sends the domain name and TCP data to the proxy server, and lets the proxy server do the actual DNS request.

          Fake IP
   <_________________________________                  domian and data w/ proxy protocol                    DNS req
APP--------------------------------->proxy client<------------------------------------->proxy server<------------------->DNS server
  |              DNS req               /|\                                                   |      web IP
  |                                     |                                                    |
  |   IP and TCP data                   |                                                    |    IP and TCP data
  |-------------------------------------|                                                    |---------------------------->website

pros & cons

Fake IP mode is a bit faster since it do not have to send a real IP to local APP, but the local app can not know the real IP of website.

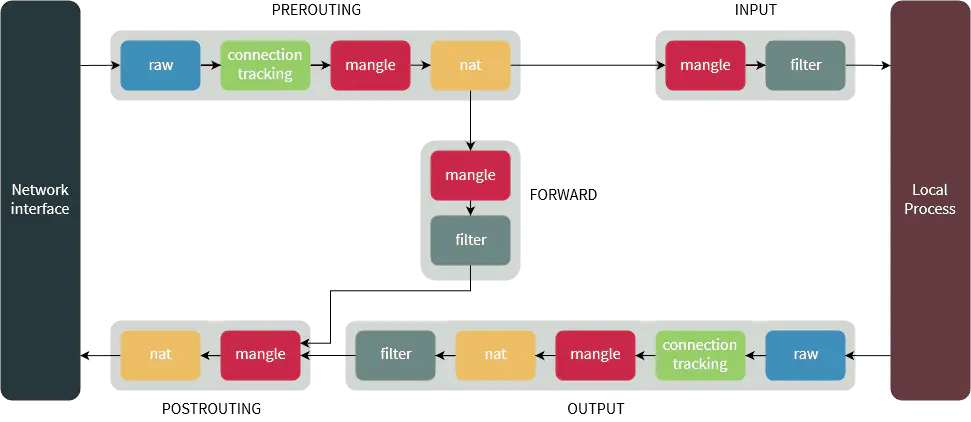

Iptables

if you don’t familiar with iptables and ip route, please do your own research. Here is a good picture for iptables overview.

iptables

iptables -L -t {nat, mangle}   # list chains
iptables -N  XXXX				# creat chain
iptables -A      				# add rule
iptables -D      				# delete rule

Requirements

  • You should have a Linux computer/device;

  • You should an available v2ray/clash proxy.

Set up a V2ray transparent proxy

V2ray config.json

dokodemo-door is used for receive all traffic forward to V2ray. The traffic go through V2ray proxy is added a socket mark 255 (0xFF) for iptables to bypass it to avoid loop back.

{
"routing": {...},
"inbounds": [
 {
   ...
 },
 {
   "port": 12345, //opening port
   "protocol": "dokodemo-door",
   "settings": {
     "network": "tcp,udp",
     "followRedirect": true // receive packages from iptables
   },
   "sniffing": {
     "enabled": true,
     "destOverride": ["http", "tls"]
   },
   "streamSettings": {
     "sockopt": {
       "tproxy": "redirect"
     }
   }

 }
],
"outbounds": [
 {
   ...
   "streamSettings": {
     ...
     "sockopt": {
       "mark": 255  // SO_MARK,for iptables
     }
   }
 }
 ...
]
}

iptables setting

run all of following with root permission, you can simple run sudo su to get the permission.

lan_ipaddr="192.168.1.1"   # local router IP
proxy_server="123.123.123.123"  # tour proxy server
proxy_port="7892"           # transparent proxy forward port

# allow ip forward
echo net.ipv4.ip_forward=1 >> /etc/sysctl.conf && sysctl -p

# set route for lo back to perouting
ip rule add fwmark 1 table 100
ip route add local 0.0.0.0/0 dev lo table 100


# proxy local network
iptables -t mangle -N V2RAY

# Ignore your V2Ray server's addresses
# It's very IMPORTANT, just be careful.
iptables -t mangle -A V2RAY -d ${proxy_server} -j RETURN

iptables -t mangle -A V2RAY -d 127.0.0.1/32 -j RETURN
iptables -t mangle -A V2RAY -d 224.0.0.0/4 -j RETURN
iptables -t mangle -A V2RAY -d 255.255.255.255/32 -j RETURN
iptables -t mangle -A V2RAY -d ${lan_ipaddr}/16 -p tcp -j RETURN # direct for local network
iptables -t mangle -A V2RAY -d ${lan_ipaddr}/16 -p udp ! --dport 53 -j RETURN # direct for local network except 53 port for DNS
iptables -t mangle -A V2RAY -p udp -j TPROXY --on-port ${proxy_port} --tproxy-mark 1 # set mark 1 to UDP,forward to proxy
iptables -t mangle -A V2RAY -p tcp ! --dport 22 -j TPROXY --on-port ${proxy_port} --tproxy-mark 1 # set mark 1 to TCP,forward to proxy, except 53 port for SSH
iptables -t mangle -A PREROUTING -j V2RAY # apply to perounting

# proxy this machine
iptables -t mangle -N V2RAY_MASK
iptables -t mangle -A V2RAY_MASK -d ${proxy_server} -j RETURN

iptables -t mangle -A V2RAY_MASK -d 224.0.0.0/4 -j RETURN
iptables -t mangle -A V2RAY_MASK -d 255.255.255.255/32 -j RETURN
iptables -t mangle -A V2RAY_MASK -d ${lan_ipaddr}/16 -p tcp -j RETURN # direct for local network
iptables -t mangle -A V2RAY_MASK -d ${lan_ipaddr}/16 -p udp ! --dport 53 -j RETURN #  direct for local network except 53 port for DNS
iptables -t mangle -A V2RAY_MASK -j RETURN -m mark --mark 0xff    # set SO_MARK as 0xff to avoid loop back
iptables -t mangle -A V2RAY_MASK -p udp -j MARK --set-mark 1   # mark UDP and reroute
iptables -t mangle -A V2RAY_MASK -p tcp -j MARK --set-mark 1   # mark UDP and reroute
iptables -t mangle -A OUTPUT -j V2RAY_MASK # apply to output of this machine

Here we use the DNS of V2ray. We first set up forward traffic to proxy, then we re-sent all packages of this machine back to itself as if it if forwarding, then just follow the forward rules to proxy.

This method is the REDIRECT method, their is a TPROXY method for V2ray, but I didn’t make it works on my machine, if you interested, see ̧here for reference.

Set up a Clash transparent proxy

Clash is a rule based proxy. It has proxy, high level routing, DNS and a lot more functions. It’s a really popular tool.

Bypass gateway

Supposing that you are using Raspberry Pi as your bypass gateway. You should set a static Raspberry address and let it works as DHCP and DNS server of the main server, or if you main router support multiple gateway, you may open two gateway on the main router, one for proxy which go through Raspberry and back, the other just works as normal router gateway. Just as this network overview graph.

Phone/PC/Pad
        |
      1 |
        |
+-------v-------+      2      +---------------+
|               |------------->               |
|  WiFi router  |             |  Raspberry Pi |
|               <-------------|               |
+------+--+-----+      3      +---------------+
       |  |
    3.1|  | 3.2
       |  +---------->  Direct LAN
       v
   +---+---+
   | Proxy |
   +---+---+
       |
       |
       v
 Internet WAN

Avoid the loop problem

To avoid the loop problem, a clash user is created, clash is run by clash, ipatables use uid to identify the traffic from clash.

  1. Create a user clash, make sure you create a home dir for clash, otherwise there is no place for clash configuration file to initialize.
useradd -U clash
sudo mkhomedir_helper clash
sudo chown clash:clash /usr/local/bin/clash
  1. Create or modify /etc/systemd/system/clash.service, which define user as clash
[Unit]
Description=clash
After=network.target

[Service]
User=clash
Group=clash
AmbientCapabilities=CAP_NET_BIND_SERVICE CAP_NET_ADMIN
ExecStart=/usr/local/bin/clash -d /etc/clash
Restart=on-failure

[Install]
WantedBy=multi-user.target

Here we set AmbientCapabilities for DNS, since we clash user to run service, it can not use 53 port, we need CAP_NET_BIND_SERVICE permission. And if we we want to proxy UDP, we need CAP_NET_ADMIN permission.

  1. do demon update
sudo systemctl daemon-reload
sudo systemctl enable clash

Clash DNS setting in config.yaml

For DNS, here we want to use the DNS of Clash, let clash do the DNS job since our local DNS may dirty. Following lines is a good templete to configure your DNS in config.yaml of clash.

dns:
  enable: true
  ipv6: false
  listen: 0.0.0.0:1053
  enhanced-mode: redir-host       # redir-host or fake-ip
  # fake-ip-range: 198.18.0.1/16    # Fake IP addresses pool CIDR
  use-hosts: true                 # lookup hosts and return IP record
  nameserver:
    - 119.29.29.29      # DNSpod
    - 223.5.5.5         # Alibaba DNS
  # if not china then use fallback
  fallback:
    - tls://8.8.8.8:853         # Google DNS over TLS 50ms
    - tls://8.8.4.4:853         # cloudflare DNS over TLS 50ms
    - https://1.1.1.1/dns-query # cloudflare DNS over HTTPS
    - https://dns.google/dns-query # Google DNS over HTTPS

  # Force DNS use fallback
  fallback-filter:
    # true: CN use nameserver resolution, no CN use fallback
    geoip: true
    # take effect when geoip set as false : when do not match `ipcidr` use `nameserver`, match `ipcidr` use `fallback`.
    ipcidr:
      - 240.0.0.0/4

Here, DNS sets as redir-host mode, you can also use fake-ip mode with

  enhanced-mode:  fake-ip       # redir-host or fake-ip
  fake-ip-range: 198.18.0.1/16    # Fake IP addresses pool CIDR

and make sure you also set the iptables accordingly.

The final config.yaml looks like this

port: 7890
socks-port: 7891
redir-port: 7892
allow-lan: true
mode: Rule
log-level: info
external-controller: 0.0.0.0:9090
secret: ""
external-ui: dashboard
# your proxy
Proxy:
Proxy Group:
#
Rule:
#
dns:
  enable: true

iptables setting

  1. First, allow forward ip
echo net.ipv4.ip_forward=1 >> /etc/sysctl.conf && sysctl -p
  1. set up iptables
#!/bin/bash

IPT=/sbin/iptables
lan_ipaddr=$(/sbin/ip route | awk '/default/ { print $3 }')
dns_port="1053"
proxy_port="7892"

# remove any existing rules
$IPT -F

# create new nat rule
$IPT -t nat -N CLASH_TCP_RULE
$IPT -t nat -F CLASH_TCP_RULE

# do not forward local address
$IPT -t nat -A CLASH_TCP_RULE -d 10.0.0.0/8 -j RETURN
$IPT -t nat -A CLASH_TCP_RULE -d 127.0.0.0/8 -j RETURN
$IPT -t nat -A CLASH_TCP_RULE -d 169.254.0.0/16 -j RETURN
$IPT -t nat -A CLASH_TCP_RULE -d 172.16.0.0/12 -j RETURN
$IPT -t nat -A CLASH_TCP_RULE -d 192.168.0.0/16 -j RETURN
$IPT -t nat -A CLASH_TCP_RULE -d 224.0.0.0/4 -j RETURN
$IPT -t nat -A CLASH_TCP_RULE -d 240.0.0.0/4 -j RETURN
$IPT -t nat -A CLASH_TCP_RULE -d ${lan_ipaddr}/16 -j RETURN

# do not forward ssh, clash http socks ports, transparent proxy port, clash web API port
$IPT -t nat -A CLASH_TCP_RULE -p tcp --dport 22 -j RETURN
$IPT -t nat -A CLASH_TCP_RULE -p tcp --dport 7890 -j RETURN
$IPT -t nat -A CLASH_TCP_RULE -p tcp --dport 7891 -j RETURN
$IPT -t nat -A CLASH_TCP_RULE -p tcp --dport 7892 -j RETURN
$IPT -t nat -A CLASH_TCP_RULE -p tcp --dport 9090 -j RETURN

# proxy_port take over HTTP/HTTPS request
$IPT -t nat -A CLASH_TCP_RULE  -p tcp -j REDIRECT --to-ports ${proxy_port}

# forward freedom DNS server address
$IPT -t nat -I PREROUTING -p tcp -d 8.8.8.8 -j REDIRECT --to-port "$proxy_port"
$IPT -t nat -I PREROUTING -p tcp -d 8.8.4.4 -j REDIRECT --to-port "$proxy_port"
$IPT -t nat -A PREROUTING -p tcp  -j CLASH_TCP_RULE
# Fake-IP rule
# $IPT -t nat -A OUTPUT -p tcp -d 198.18.0.0/16 -j REDIRECT --to-port ${proxy_port}

# forward DNS request to dns_port
$IPT -t nat -N CLASH_DNS_RULE
$IPT -t nat -F CLASH_DNS_RULE

$IPT -t nat -A PREROUTING -p udp -s ${lan_ipaddr}/16 --dport 53 -j CLASH_DNS_RULE
$IPT -t nat -A CLASH_DNS_RULE -p udp -s ${lan_ipaddr}/16 --dport 53 -j REDIRECT --to-ports $dns_port
$IPT -t nat -I OUTPUT -p udp --dport 53 -j CLASH_DNS_RULE

# this machine
$IPT -t nat -A OUTPUT -p tcp -m owner ! --uid-owner clash -j REDIRECT --to-port ${proxy_port}

We don’t forward the traffic with uid clash to avoid the loop problem.

Here we didn’t proxy UDP, only proxy DNS on 53 port. see ref Clash TProxy Mode for UDP proxy.

Save and reload iptables

There are two methods to save and reload the iptables to avoid it disappeared after reboot. One is using iptables-persistent.

  • The tool iptables-persistent will automatically reload the saved rules during starting.

    sudo apt install iptables-persistent
    iptables-save > /etc/iptables/rules.v4

  • A more flexible way is running the shell script to set iptables on every starting, in this way it automatically detect the LAN so that it can works when you changed your network environment. You can save it into /etc/rc.d/rc.local to make it run on every starting.

Special statement: This tutorial is only for learning and research, thanks.
